Real-time kinematic (RTK)
Compared GNSS Receiver

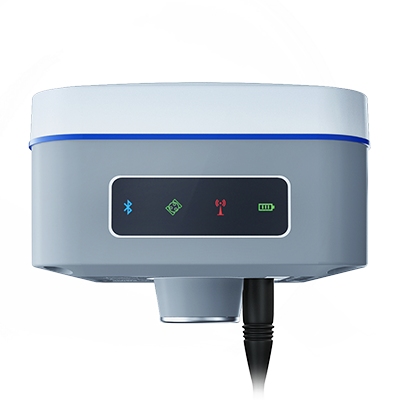

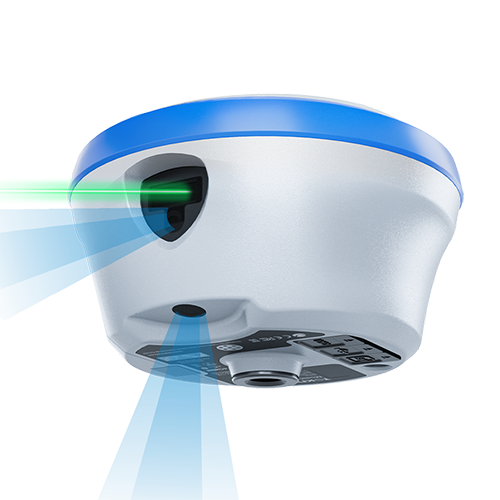

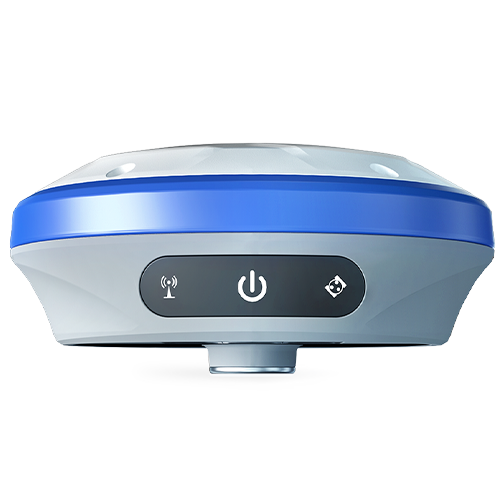

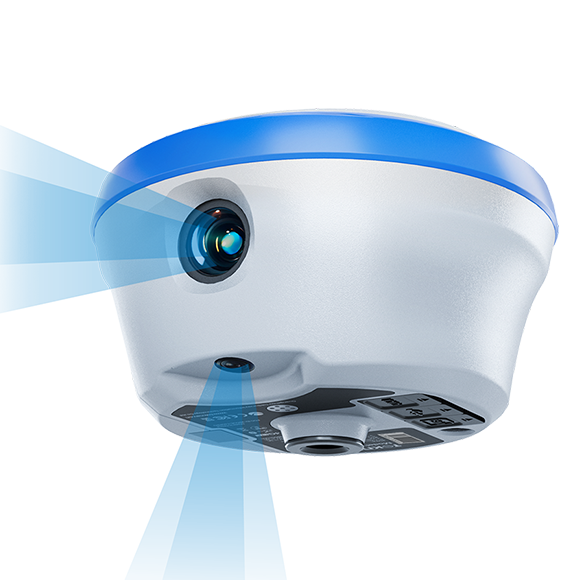

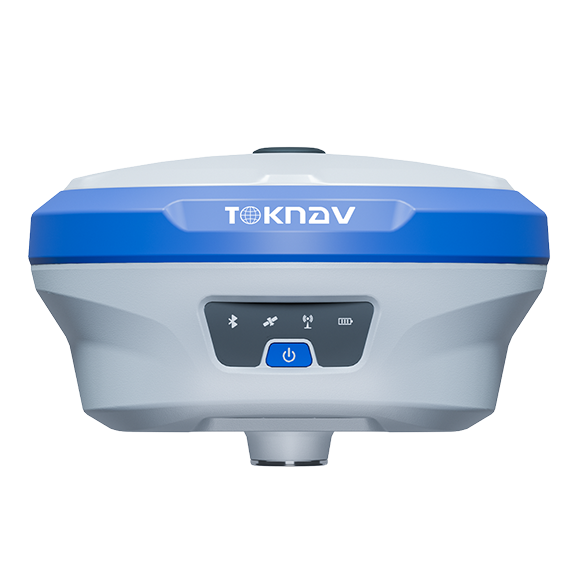

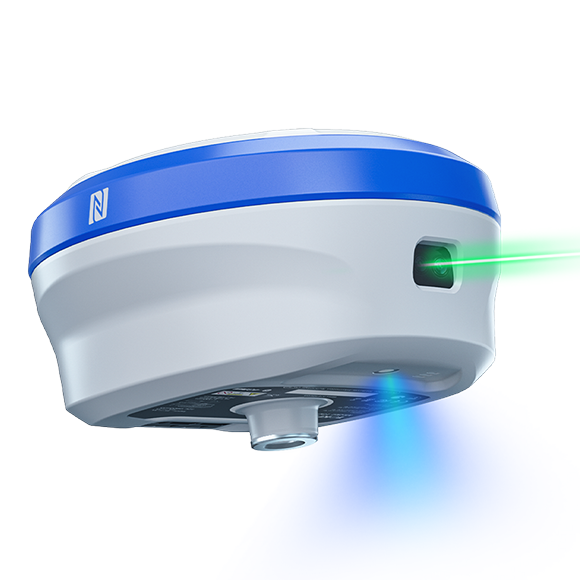

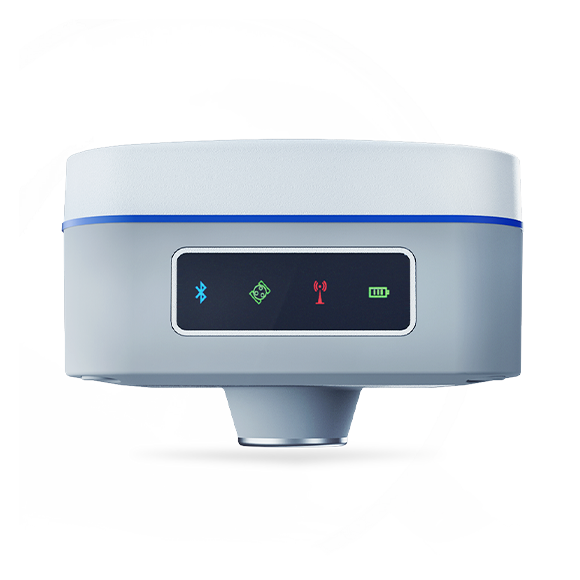

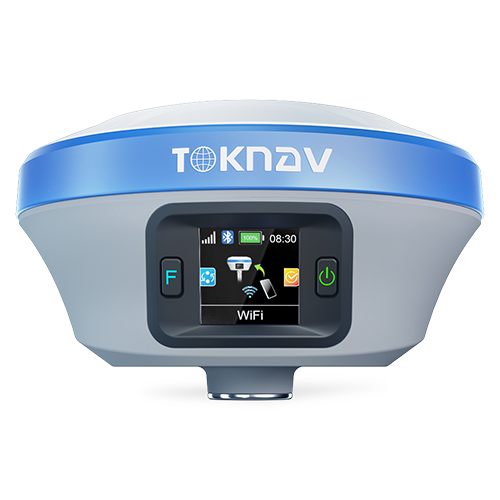

  T5Lite T5 T10Pro T20Pro tBase T30 T30Pro T40 T40Pro
Hardware System ARM Cortex-A7 1.8GHz
Operation System Linux
Channel 1408
Satellites GPS, GLONASS, BDS, GALILEO, QZSS, SBAS and IRNSS
PPP Support
Data update frequency 5Hz(max) 20Hz(max)
Data Communiaction 4G, Bluetooth, WiFi 4G, Bluetooth, WiFi, Radio
Storage 32GB
Tilt measurement IMU60°
NFC Not Support Support
AR Stakeout / Support
Laser Measurement / Support Not Support Support Not Support
Laser Assist Camera / Support Not Support
Photogrammetry / Not Support Support Not Support Support
Battery 3.7V, 9600mAh 7.4V, 6500mAh 7.2V, 13800mAh 7.4V, 3400mAh
Work time ≥16 hours(Rover) ≥18 hours(Rover) ≥12 hours(5W Radio, Base) ≥48 hours(Rover) 20 hours(Rover)
Work Temperature -20℃~+60℃
Protection IP65 IP68
Dimension 100.5*100.5*69mm 100.5*100.5*72mm Φ147.9*68mm Φ143.5*90.7mm Φ174.9*104.9mm Φ106*103mm
Weight 600g 630g 740g 900g 1500g 850g(Without battery)
